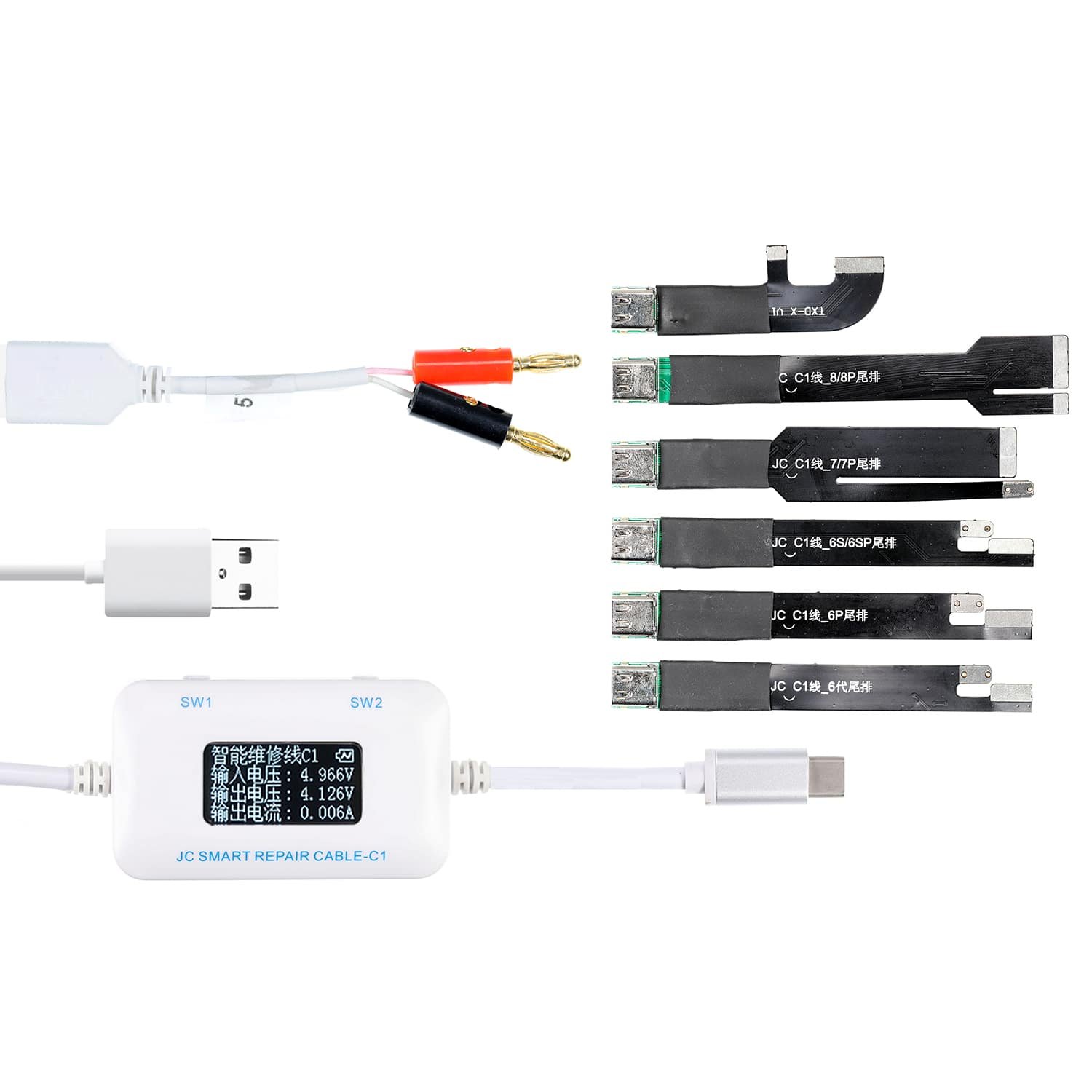

JC 2nd Gen. C1 Maintenance Line Box For iPhone 6/6P/6S/6SP/7/7P/8/8P

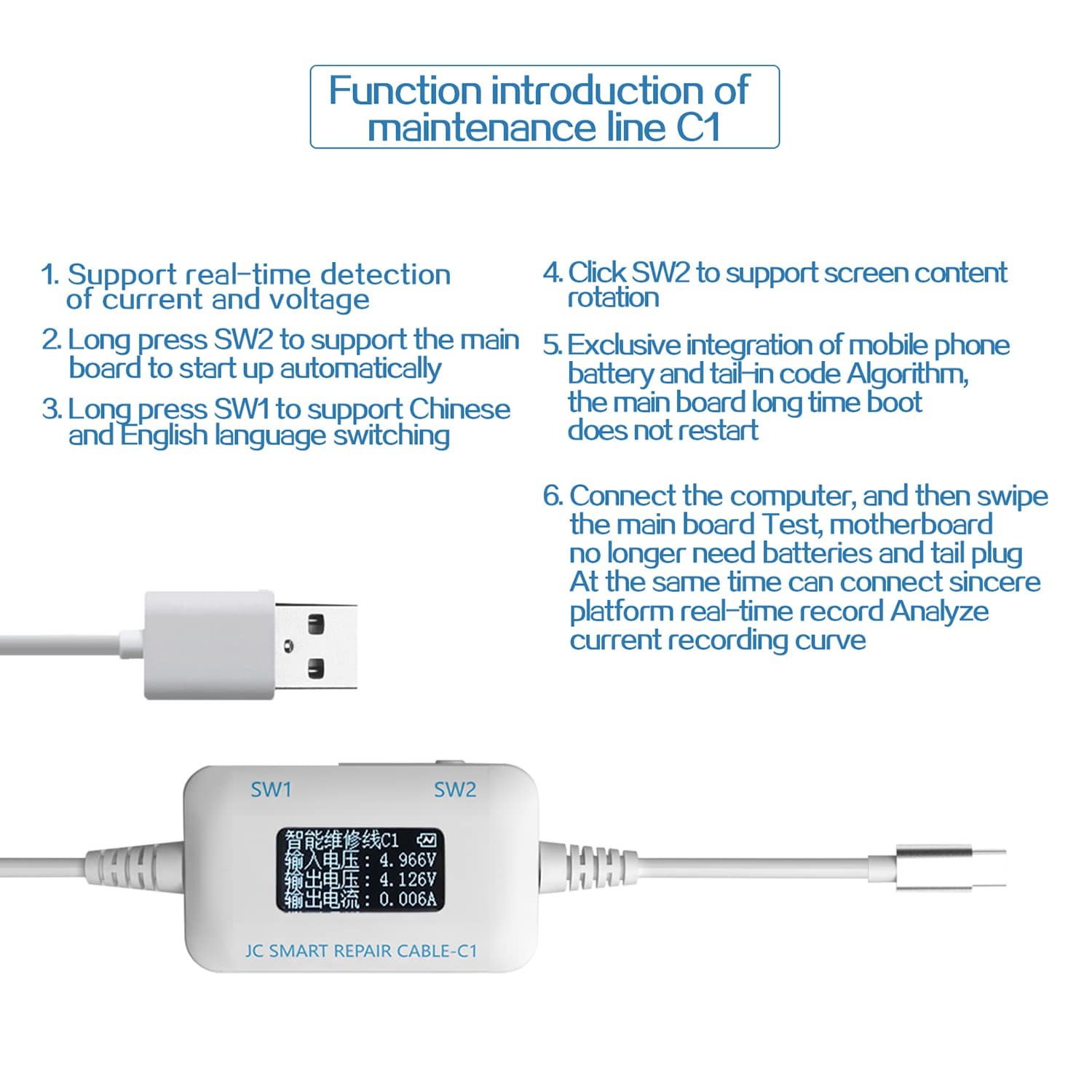

Manual:

1.Press Sw1 to shift the boot-on mode/Brushing mode, press SW1 for 3-second to shift the Chinese/English version.

2.Press SW2 to shift the current display mode(Dial mode or Digital mode),press SW2 for 3-second to boot on the PCB or phone.

3.Connect C1 to PC or USB adapter,then put the PCB in the correct location of the repair box,then press SW2 for 3-second to boot on the PCB or phone.

4.Connect C1 to PC,then put the PCB in the correct location of the repair box to proceed the brushing by iTunes,can also open JC ID platform collect the current curves to do the failure analysis

Feature:
JC C1 Box takes you into Intelligent repair
A new era of data analysis!
JC smart repair cable C1- so that repair has never been so easier
Still worrying about the brushing?
Equipped with maintenance BOX, support 6-8P, 6 common models in total
You can make a brush test, boot test, super protection, ultimate experience

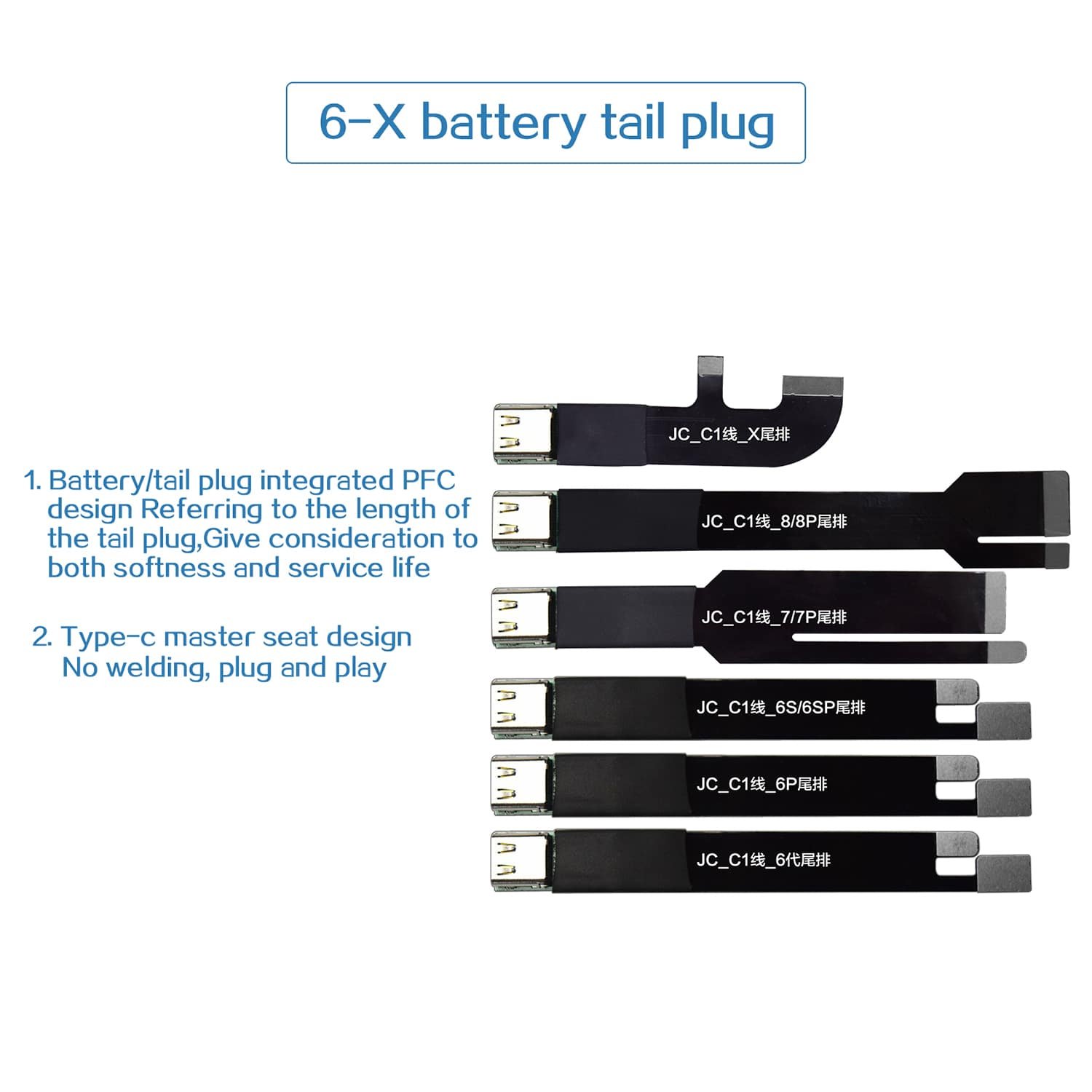

JC C1 Box built-in 6-X battery communication protocol
Motherboard maintenance enters into the era of battery-free
Long-term operation without restart or shutdown
Four high-precision current real-time display
Adopt 1.3 inch OLED screen
Support dial mode, digital mode one-key switching
Functions of the double buttons to switch quickly
JC C1 Box support brushing/ boot module one-key switch
Support one-key boot for motherboard Chinese and English switch
Support JC ST platform fault detection
Current curve real-time acquisition, saving, analysis and comparison
Support brushing/ JC ST dual platforms running simultaneously
Compatible with IOS/Android devices
Support mobile phone / motherboard fast brush test
Support mobile phone / motherboard boot current test
Production parameters
Product Smart repair cable C1
Material Environmental PVC material
color: White
Conductor： Tinned oxygen free copper
Application: Apple / Android/ TYPE-C interface
Product functions: Charging/ Brushing/ Fault Detection
Body length: 105CM
Language: English/Chinese

Everywhere needed
It is necessary of you to prepare more for good products

Maintenance essential
What if brushing and installing of the motherboard is too troublesome?
Prepare a the motherboard directly into the computer to brush machine
Plug a smart repair cable into computer directly to brush

Care-free essential
Engineering cable, data cable, Android cable, too many types? do not worry
Prepare a smart repair cable C1 to plug directly into the phone to charge
