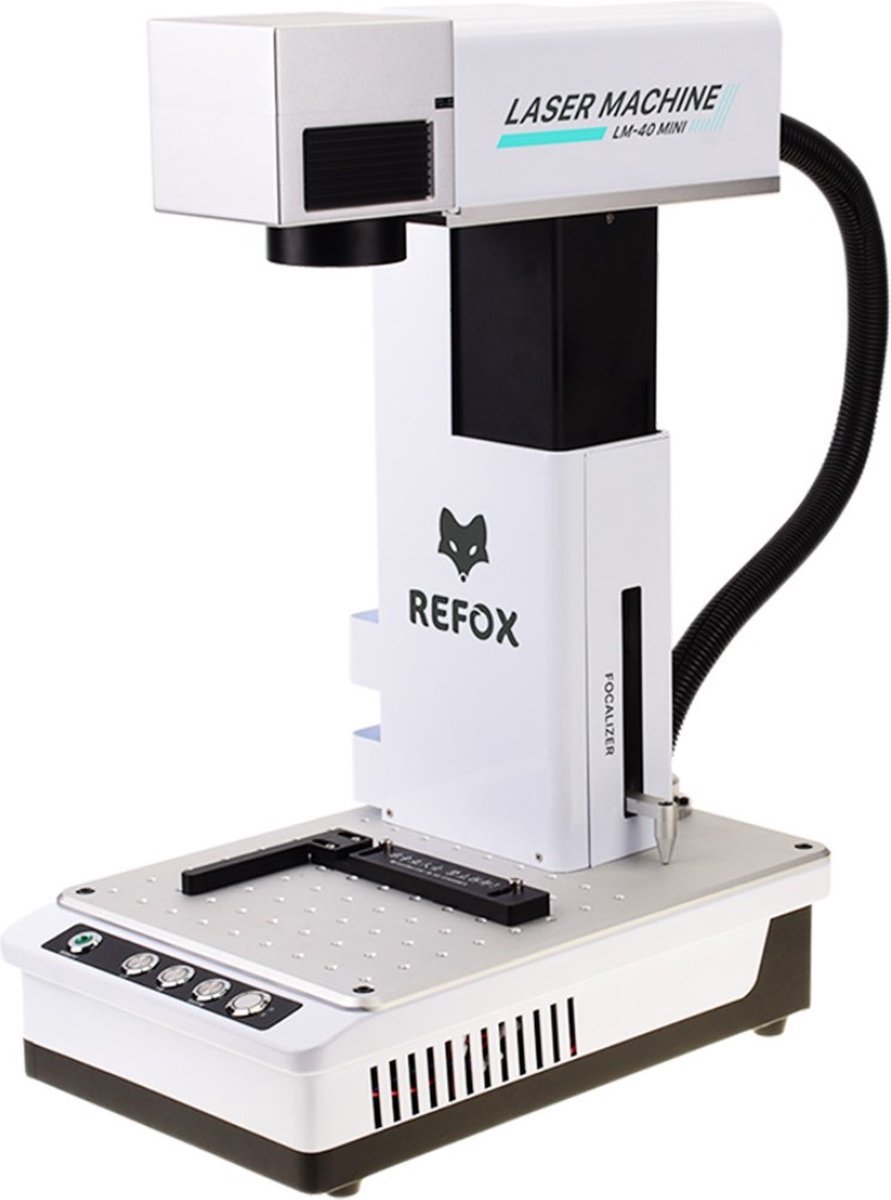

REFOX LM-40 Mini machine de marquage laser

REFOX LM-40 Mini is a small laser marking machine dedicated to refurbishing the rear cover glass of the mobile phone repair industry. This laser machine is miniaturized, lightweight, and suitable for various scenarios, especially for use in repair stores and shopping malls.

Brand
REFOX

Model
LM40 MINI

Name
Laser Marking Machine

Cooling Method
Built-in Air Cooling

Optical Maser
Laser Diode, LD

Ambient Temperature
-10℃ ~ 65℃

Equipment Total Power
≤ 800W

Power Supply
110V/220V±10%, 50Hz±5%

Laser Power
6W

Laser Wavelength
1.06 ㎛

Marking Speed
≤10000mm/s

Marking Accuracy / Repeatability
≤0.001mm

Marking Depth
0.015-0.5mm

Marking Line Width
0.05-0.01mm

Marking Format
175mm x 175mm

Efficiency
5mins/piece

Equipment Size
250 x 380 x 550mm

Equipment Weight
15KG

Certificate
CE

Detailed Features For LM-40 Mini Laser Marking Machine
Independently develop a marking system: Automatic and real-time diagram updates of massively accurate drawings on the cloud
One-click accurate focus: Focal length pins are highly accurate and intelligent.
Sundry usages availability: Can be used in different scenes with a special anti-smoke glass cover
Featured high-speed galvanometer: Supports multiple times of etching, 2–5 times higher than an ordinary galvanometer
Precise position function: The professional workbench makes your equipment positioning more accurate and has a larger operating space
Space-saving size: Small dimensions and lightweight structure prevent your desktop from being a mess

What can you do with the Laser Marking Machine?

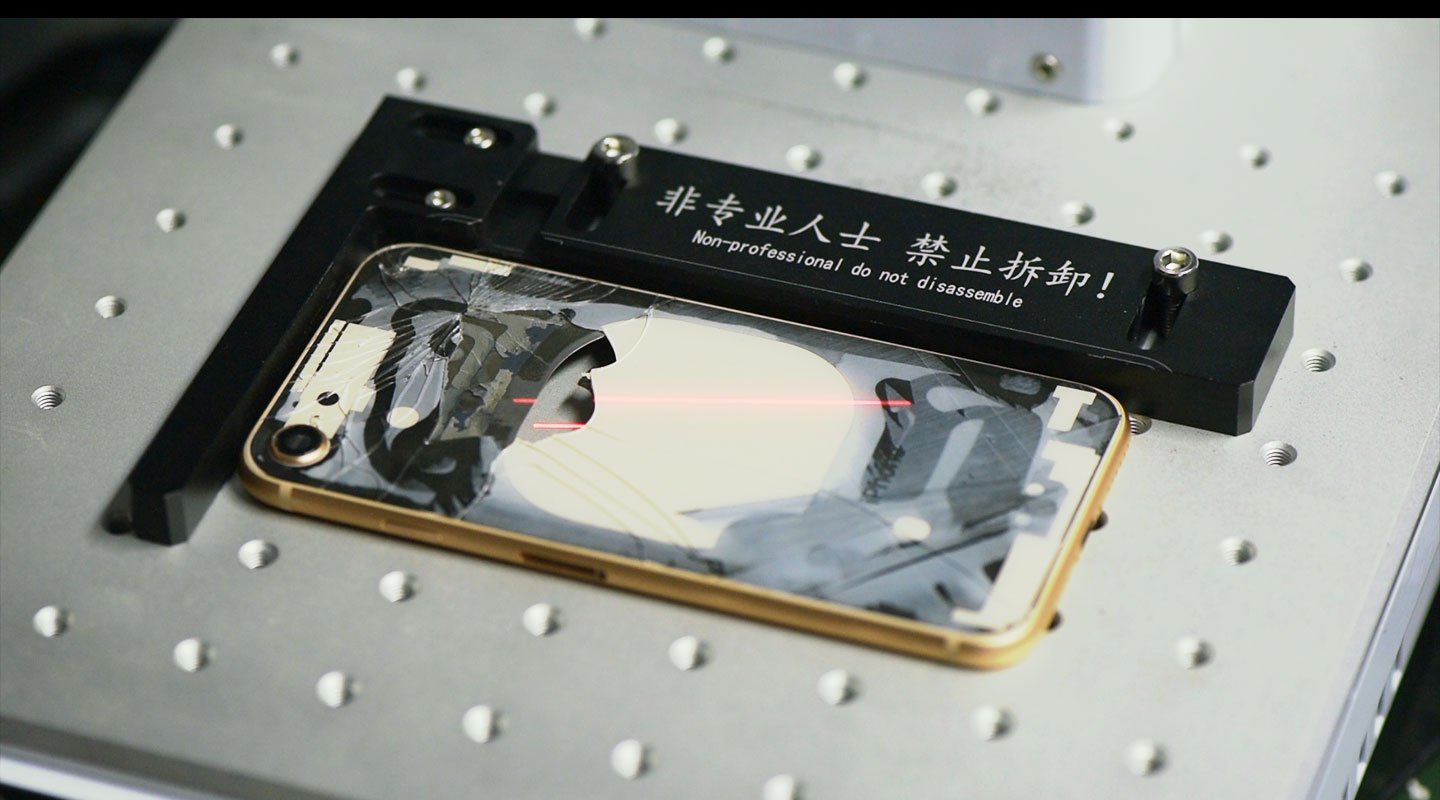

Back Cover Glass Disassembling
Front Bezel Separating
LOGO & Text Marking
